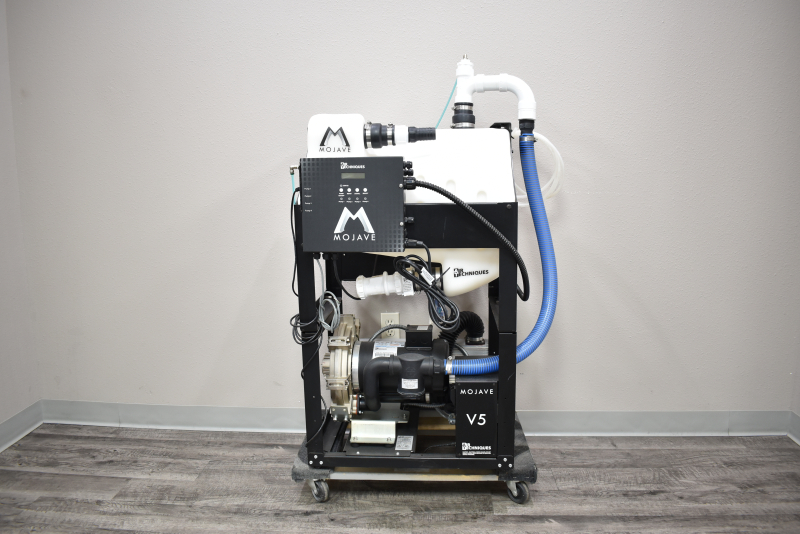

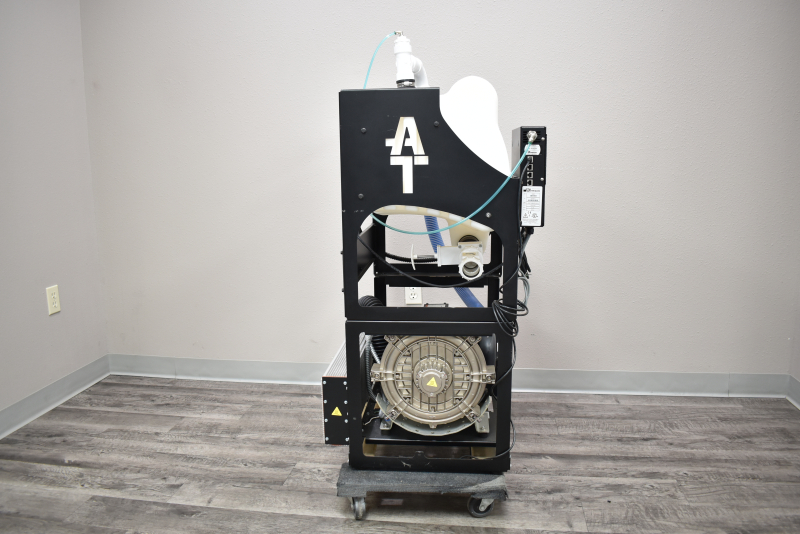

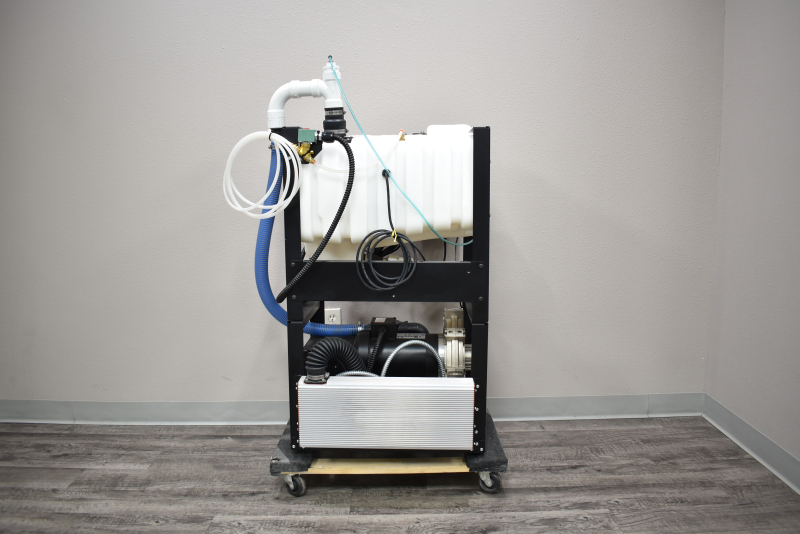

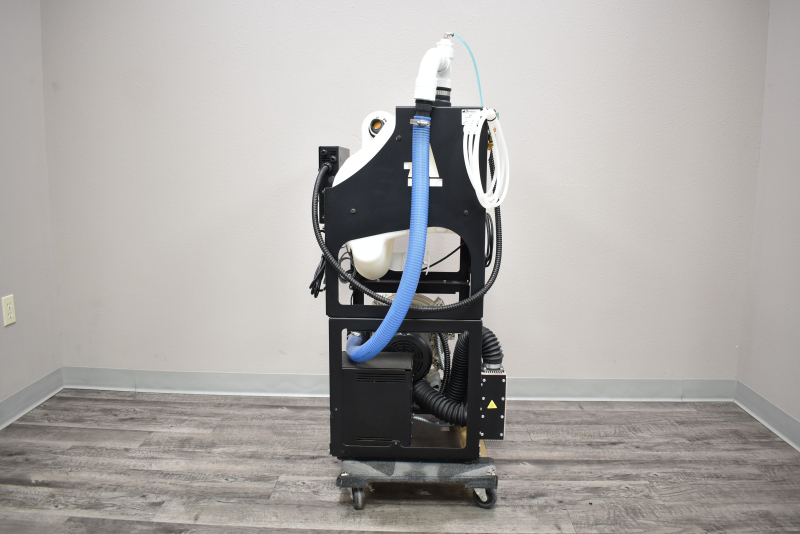

Air Techniques Mojave V5 Dry Vacuum Manu. 10/2014 *Refurbished*

Manufactured 2014 and Ready to Ship Today

Mojave delivers one of the highest suction power of any dry vac system available today. High performance, high efficiency, and low operational costs.

One V5 Dry Vacuum Pump and an MT10 Tank

220V

HP: 1.1 kW or 1.5 HP

MT10 Tank 10 gallon maximum capacity

Tank Material: Rotomolded Plastic

Vacuum Pump Assemblies:

A single-stage pump, where all of the wetted metal parts are nickel plated or stainless steel

A metal electrical enclosure that houses a VFD (Variable Frequency Drive), circuit breaker, and an interface PCB

An aluminum heat exchanger to cool the exhaust air from the pump before it travels through the exhaust vent

A metal chassis for mounting components

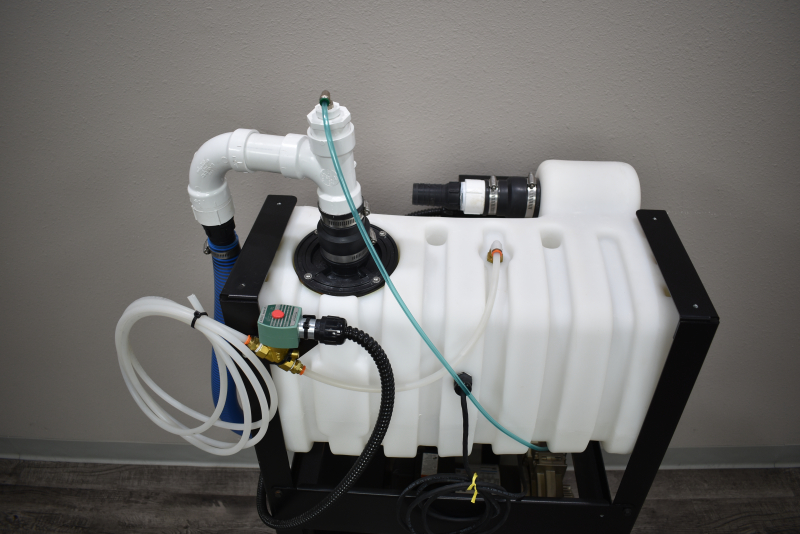

10 Gallon Separation Tank Assembly MT10

A molded plastic tank that is capable of holding 10 gallons of liquid

An internal float switch that signals the Master Controller to turn the vacuum pump OFF if the liquid level exceeds the preset level

A washout port with internal nozzle that is used to rinse the interior of the tank during the automatic Washout Cycle

A metal chassis for mounting components

Dimensions: 29" W x 22" D x 33" H

CLICK HERE TO VIEW PDF MOJAVE 5 MANUAL

This Item Freight Ships on Pallet
