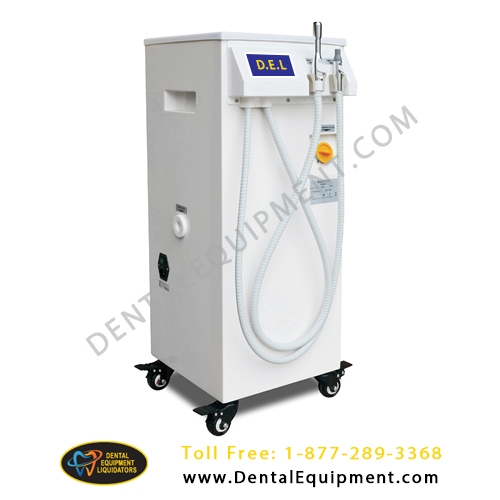

DEL Mobile Vacuum Cabinet, Self Contained *New*

This portable, self contained vacuum system suitable for use by the dentist in a temporary location or when it is not feasible to install a central vacuum system.

Moves with Ease - Reinforced large polyethylene carpet casters

Efficient - Variable controlled motor speed can evacuate at the rate of 75 cfm, or my be adjusted to the user’s preference

Quiet - Equipped with muffler system for quiet operation

Simple Maintenance - Non-corrosive collection canister cleans easily and is equipped with an automatic overflow shut-off

Perfect Backup - Invaluable backup when the central system breaks down. The user just rolls it out, plugs it in, and continues operating.

Compact - Measures only 14“ x 12“ x 31“. Easily placed at chair side and stores inconspicuously. Weighs Approx. 65 lbs.

Specifications

Electrical 7/8 HP

115 VAC, 50/60 Hz

230 VAC, 50/60 Hz

4.0 Amps

Package includes the following:

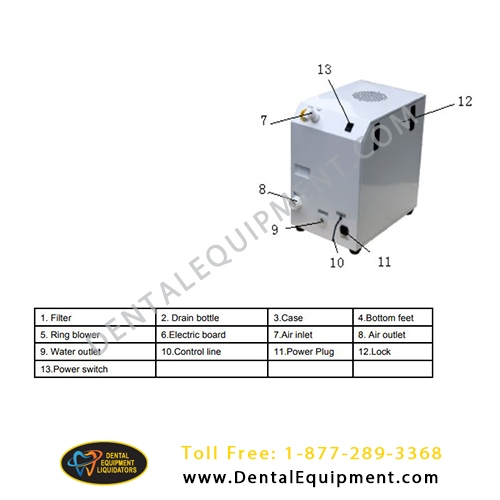

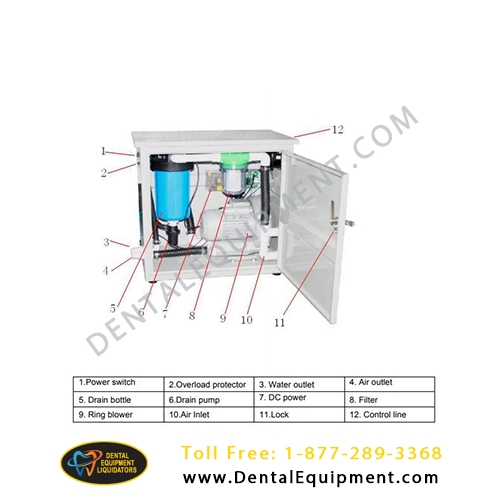

• The structure consists of drain bottle, filter, ring blower, DC water pump and case
• HVE and SE valves on each suction hose  - Activates only when HVE or SE valves are lifted from hanger
• Drain line
• Solids filter
• Power cord
• Owners manual
• White high impact resistant polyethylene case
