Dry Dental Vacuum System Single 1-6 Users *New*

COMPLETELY WATER-LESS & COMPLETELY OIL-LESS SINGLE 1-6 USER DRY VACUUM SYSTEM

Welcome to worry free suction with this ultra-reliable utility room equipment. Nothing is left to chance during the manufacturing process of these state-of-the-art dry vacuum systems. From the German engineered motor rated for 20,000 hours, to the easy-to-replace 10-micron filter, significantly decreasing your time spent on equipment maintenance.

The first thing you’ll notice upon start-up of your dry vacuum system, is how unbelievably quiet it is. At only 61 decibels, it eliminates “equipment room noise” all together, which means your waiting room will be very quiet.

Equipped with a high-quality German engineered motor, which produces an impressive 2.4 horsepower, it creates an astounding 85 CFM. This dry vacuum is more than capable of supporting 6 users simultaneously with no noticeable drop in suction. It even grows with your practice… Doubling your capacity is as easy as installing an additional motor assembly.

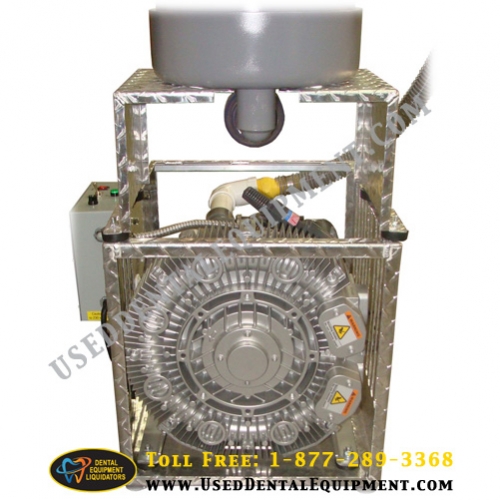

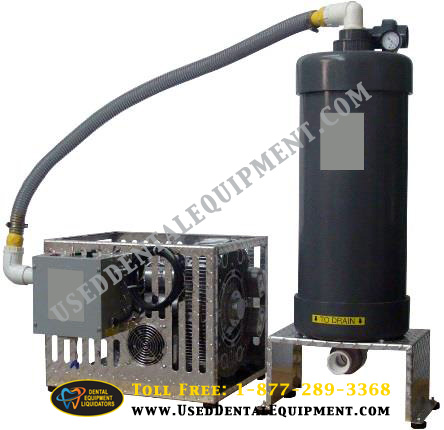

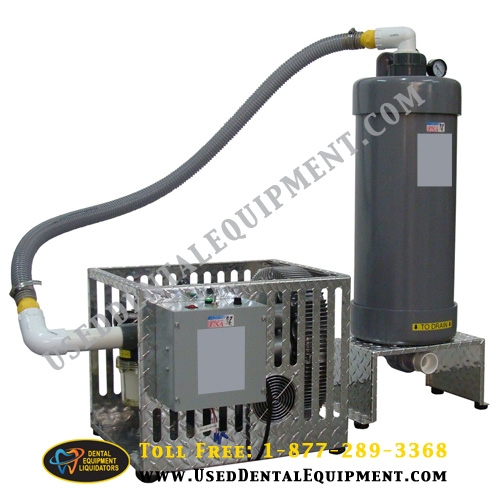

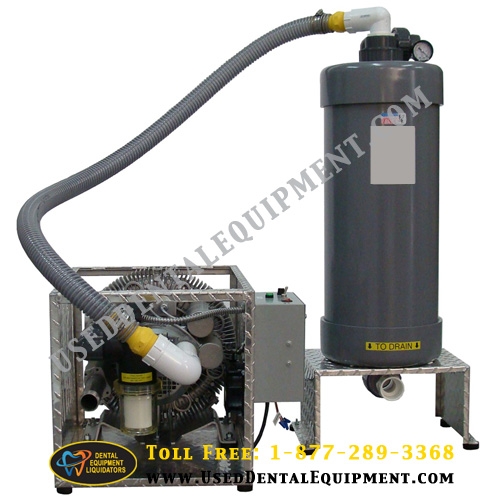

This dry vacuum system consists of two pieces; The separator tank, and the motor assembly. These can be installed in several different configurations, and can even be installed in two separate areas of your practice if necessary. The tank automatically drains when the vacuum is turned off, thanks to gravity.  If the tank happens to fill up during operation, (no reports to date) a seal is created at the top of the tank, allowing gravity to take effect and drain the tank. At which point, you turn off your vacuum to “break” the seal, then simply turn it back on to continue operating.

Perhaps one of the most important features of this vacuum, is that it only has ONE moving part. What does this mean for you? Two things; Less of a chance for motor failure and less maintenance required (quarterly filter changes).

Specifications
Capacity: Up to 6 Users
Warranty: 10 Years
Voltage: 115 / 230 V AC *Please specify voltage requirement when placing order*

Completely Waterless
Completely Oil-Less
Power: 1.75 HP
Chassis Footprint: 21”x 20”x 16”
Chassis Weight: 85 lbs
Flow Rate: 85 CFM
Noise Level: 61 dB
Vacuum (“Hg): 8.5” Hg
Current: 20 / 10 Amps
Tank size: 40” Tall / 12 Gal.
Tank Weight: 43 lbs

Dimensions: 20″ x 20″ x 17″
Tank: (12 gallons) Wt. 43lb Ht. 40”

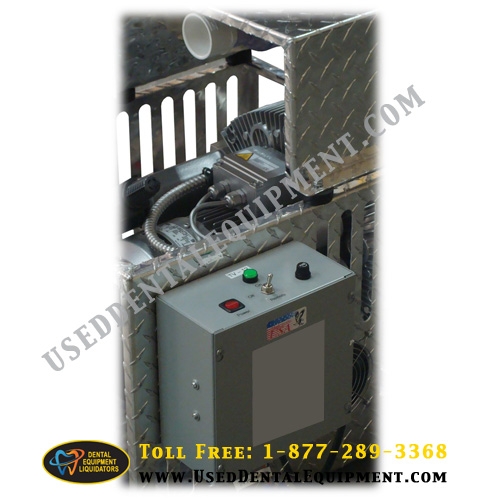

Includes: Low voltage control, separator tank with automatic drain and check valve

This Item Freight Ships on Pallet
