Manifold System O2/NO2 Complete System *New*

Belmed - 2 Oxygen / 2 Nitrous Oxide Cylinders Systems

Please Choose Your Choice of Mounting Configurations:

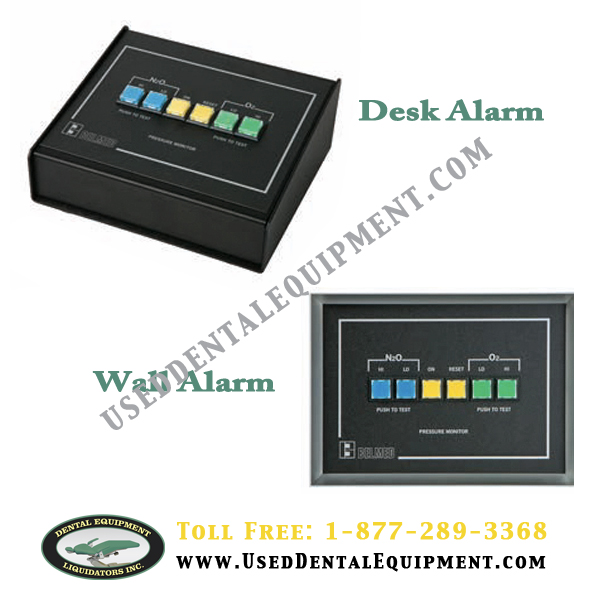

Wall Alarm System - 2 Oxygen / 2 Nitous Oxide Cylinder(s)

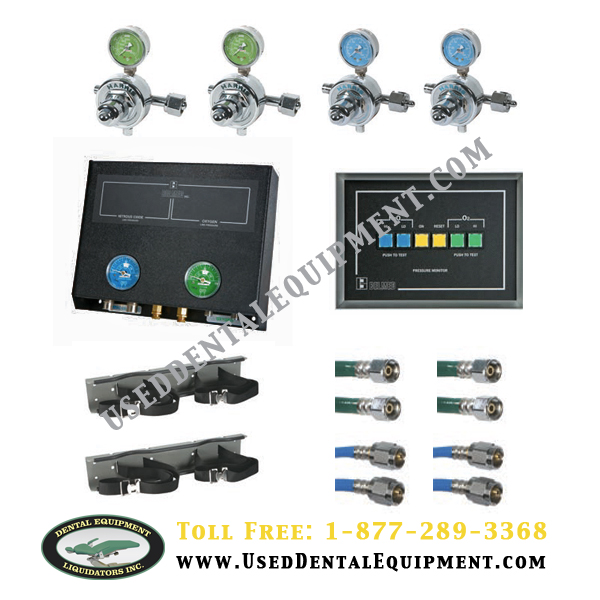

Includes: Manifold, Alarm, Cables, Regulators, Hoses, and Tank Restraints as pictured

OR

Desk Alarm System - 2 Oxygen / 2 Nitous Oxide Cylinder(s)

Includes: Manifold, Alarm, Cables, Regulators, Hoses, and Tank Restraints as pictured

Features:

• O2/N20 Dental Manifold
• Lo/Hi Pressure Alarm Panel
• 50 PSI Preset regulators (2) OXY & (2) N2O
• Large Cylinder Restraints

Specifications:

• Manifold Dimensions: 11.5"H x 9.25"W x 3"D
• Alarm Size: Wall = 5"H x 7"W x 0.75"D   Desk: 5"H x 7"W x 4"D
• Relief Valve PRessure: 75 PSI
• Normal Working Pressure: 50-55 PSI
• Maximum Hose Presure: 250 PSI (1000 PSI BURST)
• Hose Length: 60"
• Outlet Line Size: Oxygen = 1/2" OD Copper   Nitrous Oxide = 3/8" OD Copper
• Low Pressure Alarm Point: 40 PSI
• High Presure Alarm Point: 65 PSI
• Primary Voltage to Alarm: 12 VAC
• Wire: Maifold to Alarm = 50' - 5 Conductor/22 GA. Plenum  Transformer to Alarm = 30' - 2 Conductor/22 GA. Plenum
• Fuse: 5MM x 20MM - 0.5 AMP
• NFPA 99C: Level 3 Code Compliant

This is a Brand New Product
