ASI 2025M Dual Doctor’s & Assistant’s Dental Cart with Transport Case *New*

SKU: 1642
Stock: 24
Warranty: 1 Year Parts, 90 Days Labor
Price: $30,000.00
$14,995.00

Qty: - +

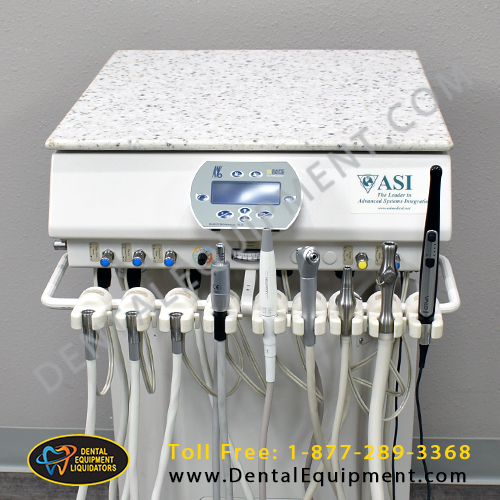

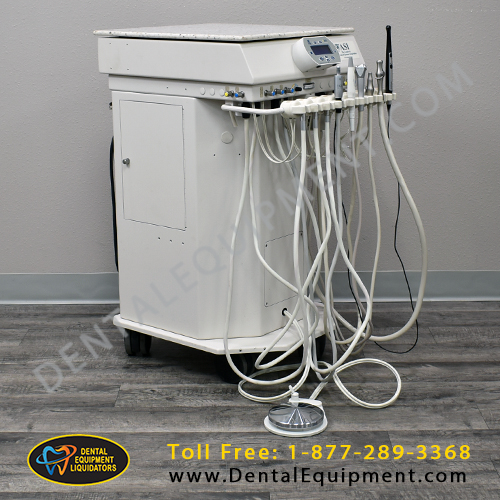

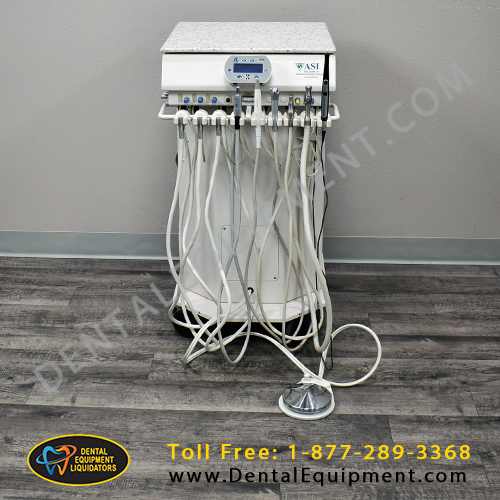

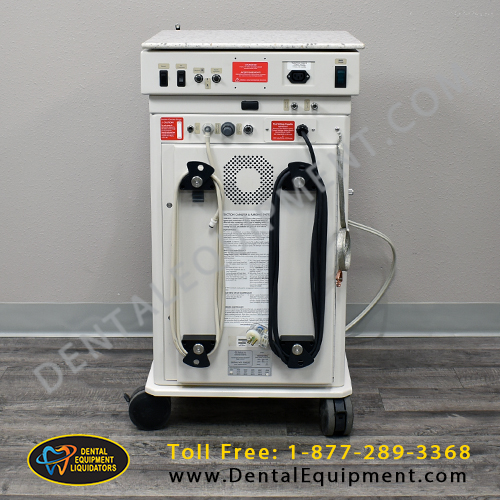

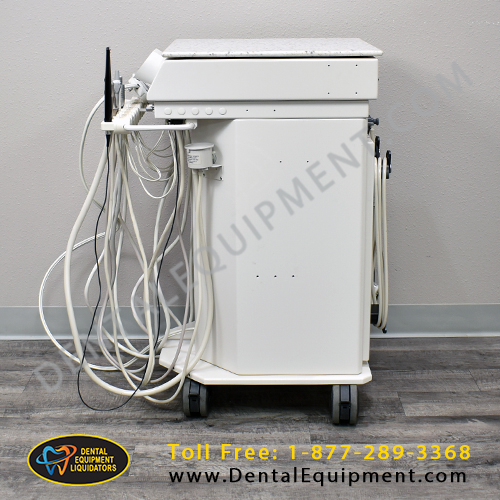

ASI Fully Self Contained Delivery System (model 2025M) with Transport Case

*Units are NEW from Surplus Stock*

ASI Dental’s Triton Series of self contained mobile dental units  provide an ideal solution for your dental treatment needs. Whether you are setting up a new dental office, expanding an existing one or need an operatory for portable dentistry, the high quality and engineering of our line of mobile dental equipment will provide the performance you require.

Simply plug it into a standard electrical outlet and it’s ready to go. Select ideal dental office locations without worry of landlord approval, no trenching required for drainpipes, no permits required, and minimize contractor delays. Complete with on board water supply, compressed air and vacuum make them a complete self-contained  dental system ready for full day of dental procedures. Simply roll in and out of leased spaces.

Model Features

  • Suction Exhaust Bacteriostatic Filter to filter air exhaust down to .2 microns for bacterial and viral agents
  • Internal Air Compressor and Vacuum Pump
  • Plugs in to a Standard Electrical Outlet
  • Ideal Rear Delivery Cart

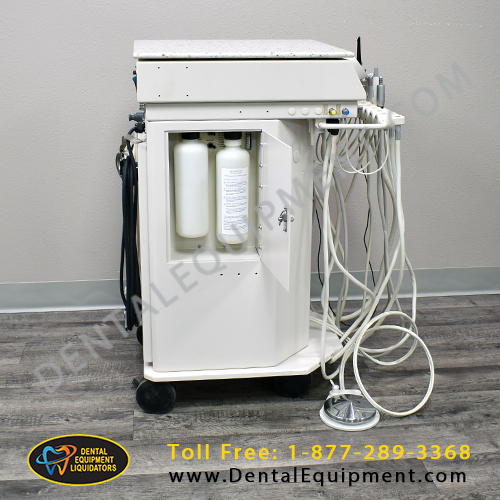

  • Dual Enclosed Water Bottle System
  • KaVo Electric Motor Handpiece
  • Pieze Ultrasonic Handpiece
  • Valo Curing Light
  • 2 High Speed Fiber Optic Air Driven Handpiece Connections
  • 1 Low Speed Air Drive Handpiece Connection
  • Air/Water Syringe
  • HVE and Saliva Ejector
  • Dual Voltage

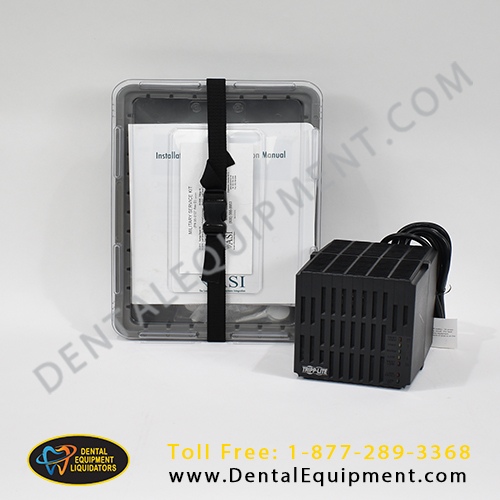

  • Includes Transport/Shipping Case
  • Includes Power Conditioner
  • Repair Kit
  • Stainless Steel Control Block, Valves, and Handpiece Connections
  • Custom handpiece holders accommodate most popular brands of handpieces. The ratcheting design allows for optimum positioning.

Convenience Features

Includes air, water and electrical outlets for utilizing table top accessories. Dual voltage capability.

Bracket Storage Options

ASI’s 12 sided rail system to allow a variety of optional storage accessories to be added.

Structural

  • 1/8″ Thick Aluminum Chassis
  • Heavy Duty Commercial Dual Tread Casters are Quiet & Easy to Roll

Finish

  • Durable Powder Coat Finish – Colorado Beige

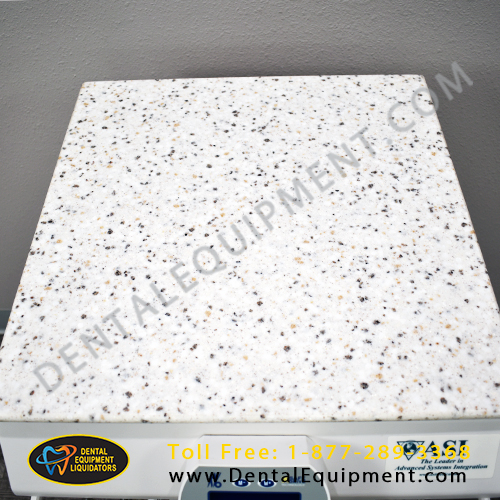

  • WilsonArt Solid Surface Work Top

Technical Specifications

Construction: High grade aluminum sheet metal

Finish: Baked on powder coat

Dimensions: 19.5”W x 27.5”D x 35.5”H

Weight: 150 lb.

Compressor System

Type: Oil-less piston

Duty cycle: Intermittent Duty

Working Pressure: 80–100 psi

Flow rate: 2.5 cfm

Air reservoir: 4 liters

Air drying: After-cooler with pneumatic filter

Electrical System

Main Power 120 Volts / 60 Hz

Water System

Reservoir Capacity: 2–1.0 liter bottles

Operating Pressure: 35 psi

Aseptic, non-retracting water system

Vacuum System:

Type: Oil-less piston

Duty cycle:  Intermittent Duty

Vacuum: Adjustable 5” - 20”

Vacuum flow: 5.5 cfm free flow

Waste receptacle: 4 liters

Waste purge tubing:

Automatic overflow shutoff

Aseptic filtered exhaust

Solids trap
